Insulation & Screen Removal
from only £205.80 Ex VAT
Raychem high voltage (HV) cable jointing and stripping tool for extruded and bonded semi-con cable screens and primary insulation cable diameters, 35mm-90mm & 75mm-150mm
- Cable jointing tool HVIA-STRIPPERs are used by HV jointers for reliable high voltage cable preparation prior to the installation of 11kV-33kV cable joints and terminations
- Stripping tool for extruded and bonded cable screens and primary insulation for cable diameter from 35-90mm or 75-150mm
- For use on medium and high voltage cables
- Handle to adjust spindle to cable diameter
- Setting screw to adjust cutting depth of blade for removing primary insulation
- Locating hole for blade
- Locking screw for cable insulation blade

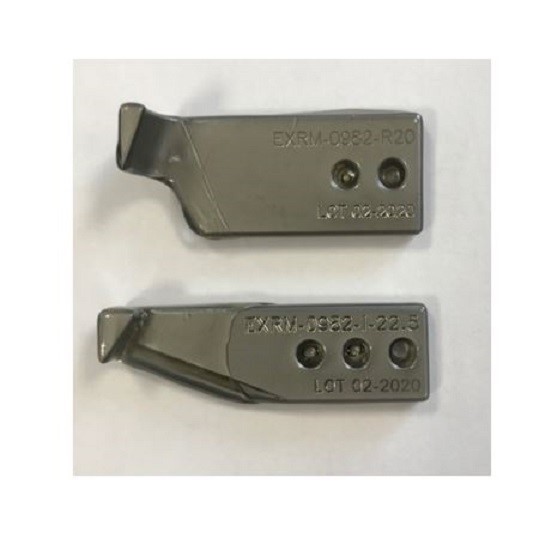

- Blade EXRM-0982-I-22.5 for removing primary insulation (HVIA-STRIPPER 35/90), Blade EXRM-0962-I-22.5 for removing primary insulation (HVIA-STRIPPER 75/1500)
- Adjustable rollers (2 positions)
- Blade EXRM-0982-R-20 for removing bonded cable screen (US-Version: EXRM-0982-R-20-4)
- Locking screw for cable screen blade
- Setting screw to adjust cutting depth of blade for chamfering the semicon screen at screen transition

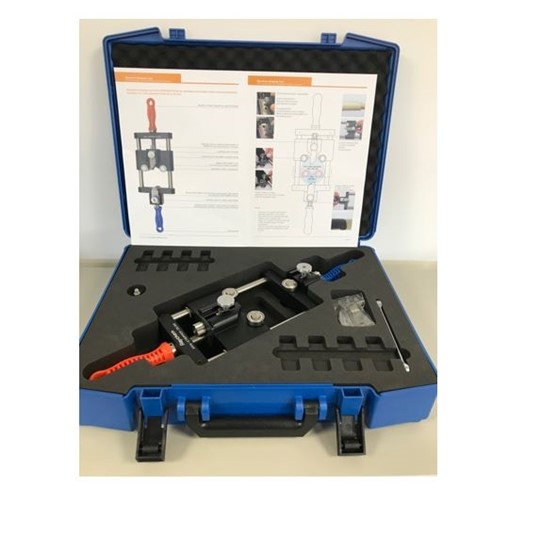

- Supplied c/w hard plastic carry box
