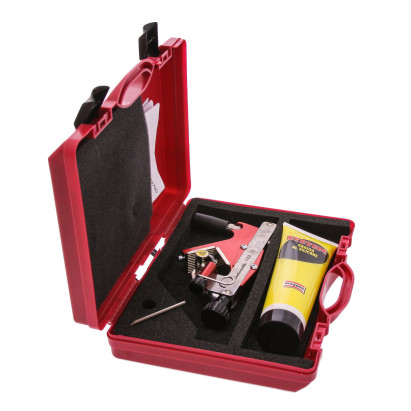

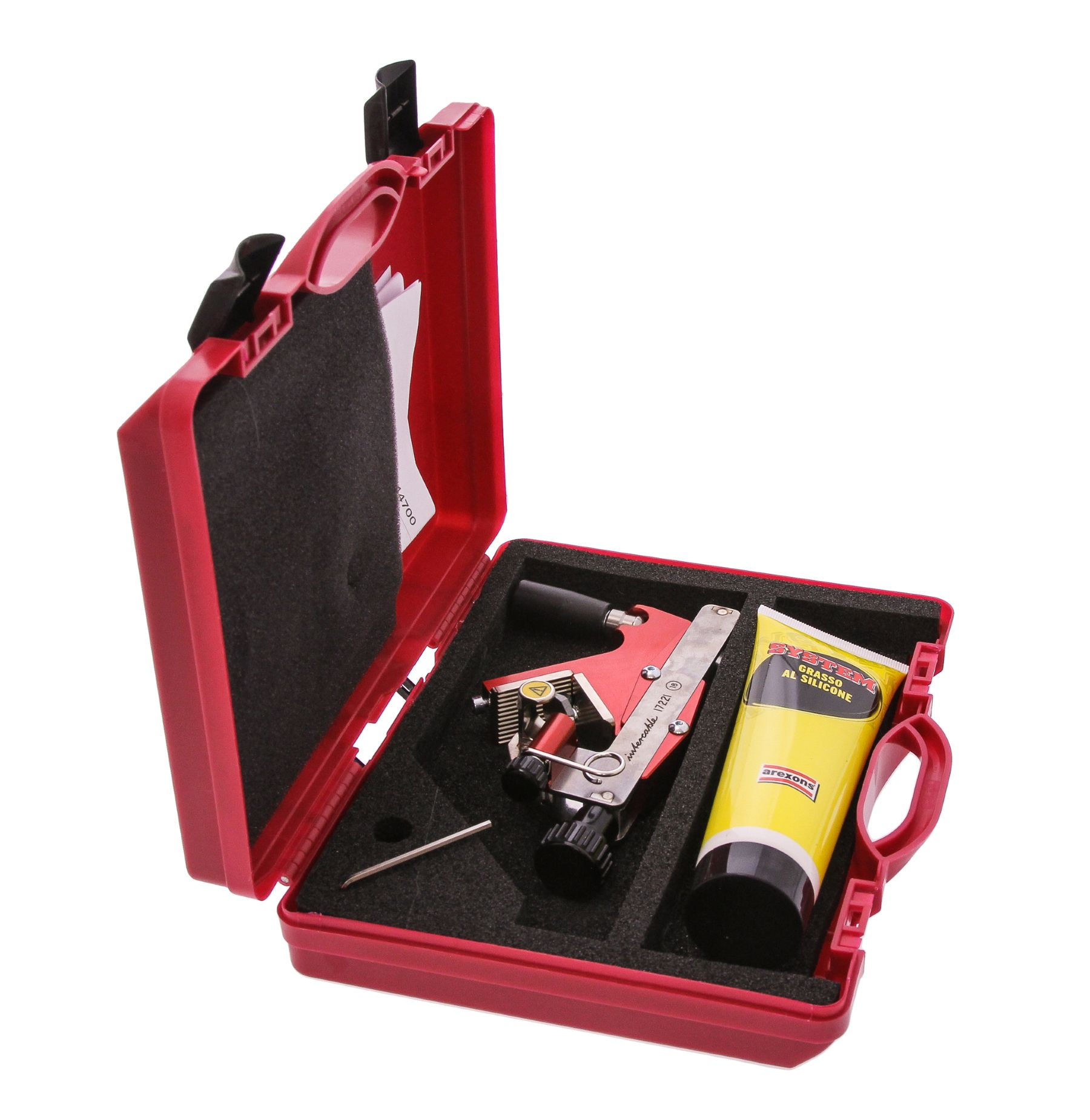

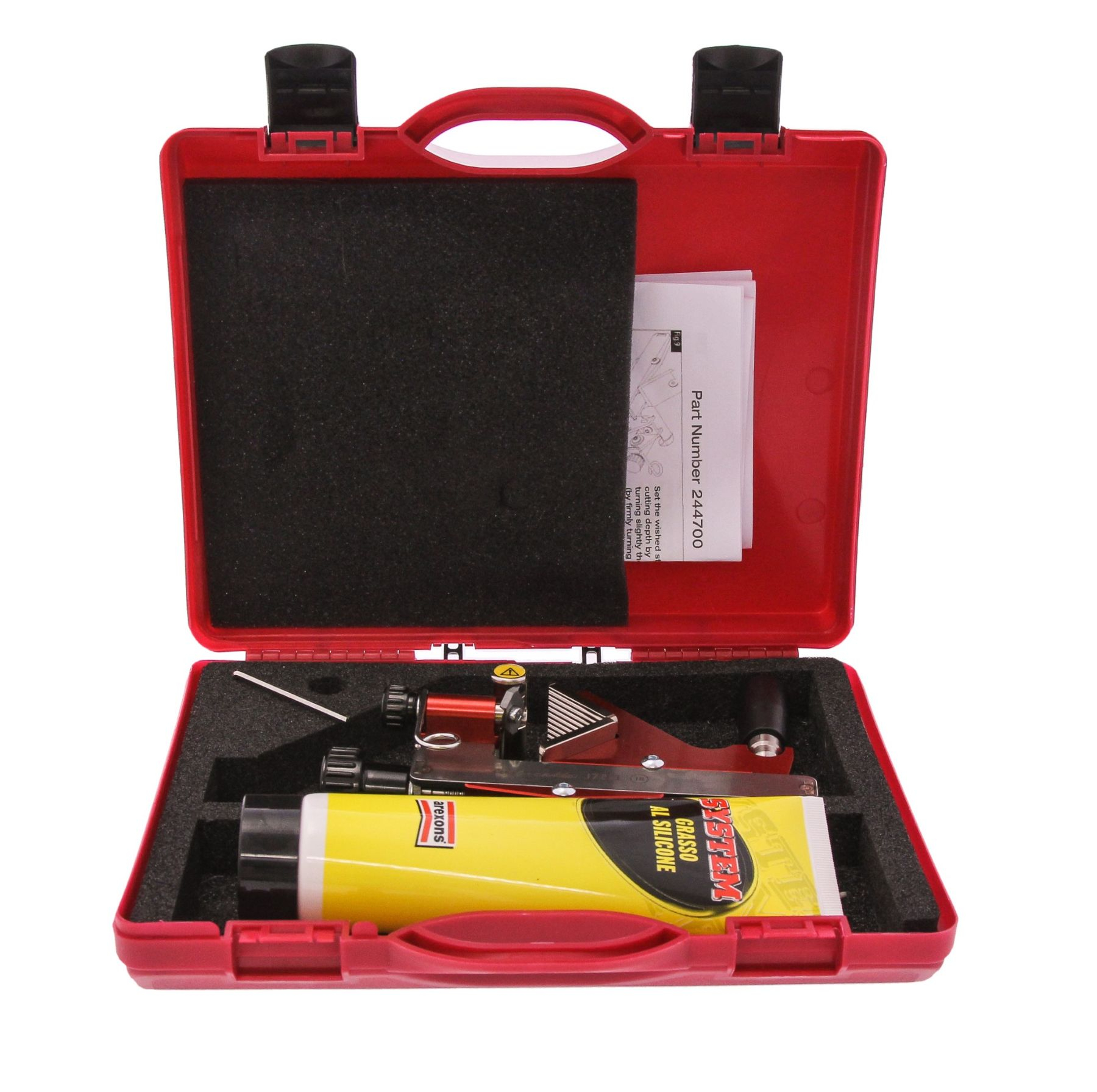

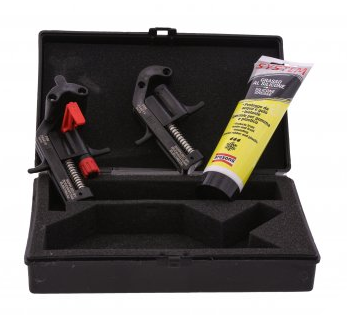

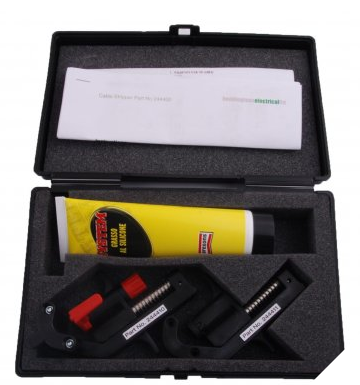

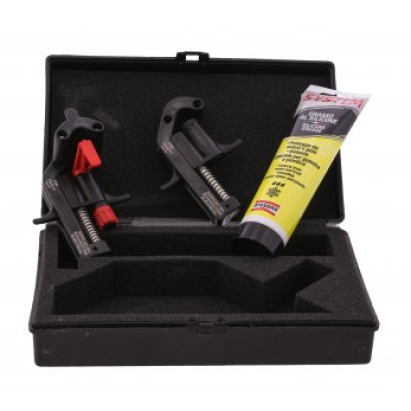

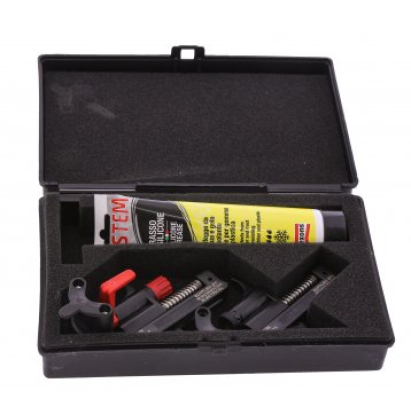

Boddingtons Semi Con Stripping Tool Set (Equivalent Intercable AV6400)

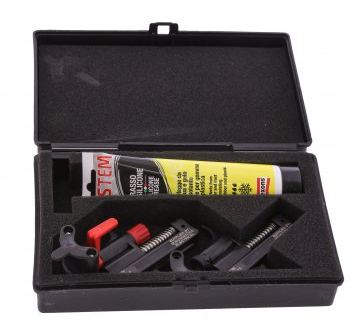

The kit comes complete with the following:

• 244410 Stripping Tool for Peelable Semi Conductive Screen
• 244702 Silicone Paste 100g
• 244411 Stop Clamp for use with 244410
• 244413 Plastic Hard case

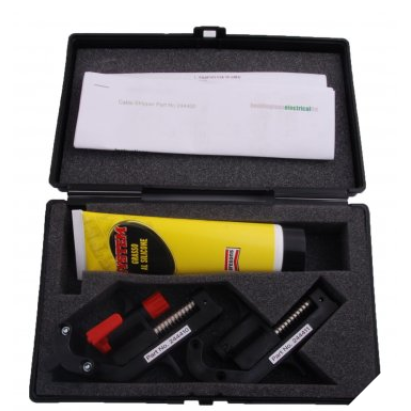

Cable Stripper for Non-Vulcanized Semiconductive Layer

• Application range: ø 16 - 41 mm
• Insulation thickness: 0 - 2 mm
• Max. rotating diameter: 130 mm
• Suggested application: Non vulcanized, peelable semiconductive layer
• Dimensions:  250 x 160 x 55 mm

Technical Characteristics

• Longitudinal, helical and circular cuts
• Positioning on the cable through vice system
• Stop clamp to limit the stripping length
• Step-by-step depth adjustment
• The incision depth can be adjusted from 0 to 0,9 mm with 0,1 mm trips
• The start of longitudinal incision can be done in exact correspondence with the circumferential one
• Reduced rotation enables to work on limited space
• Perfect precise circular cut
• No incisions on surface below
