Standard Earth Bar


from only POA

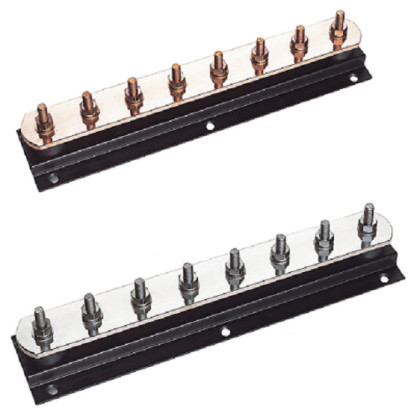

Furse Earth Bars – Standard (Bare Copper & Tinned Copper options available)

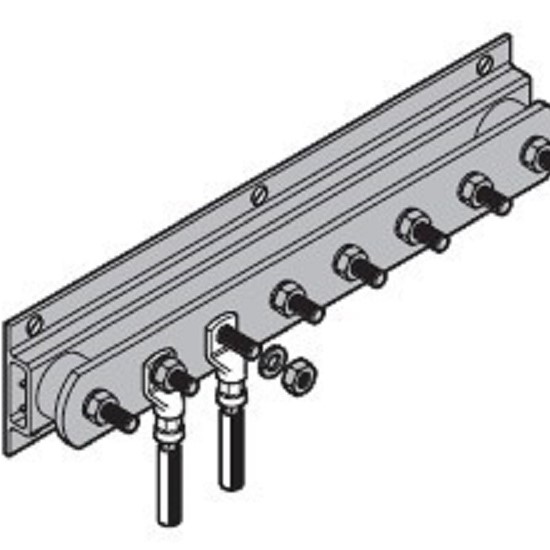

Earth Bars are an efficient and convenient way of providing a common earth point with integral disconnecting links which facilitate easy isolation for testing purposes

  • A standard earth bar to facilitate multiple connections to earth
  • Manufactured out of high conductivity 50x6mm HD copper bar
  • The PVC channel base is entirely corrosion proof - made with high impact UPVC unlike the traditional galvanised steel channel
  • Lighter and easier to handle - the use of a modern polymer channel has reduced the weight of the product making it easier to handle
  • No need for insulators - spacers used as the PVC base is insulating
  • M10 phosphor bronze stud assemblies
  • Pre-drilled holes for ease of installation
  • A range of four designs to meet most installation requirements
  • Custom made earth bar service available
  • Tinned options available on request
Order
Part Number Wolseley Code Stud Material No. of Ways Stud Size Weight Each Price Ex VAT Quantity
LK245-4 CJ2116 4 M10 300 x 90 x 90mm 1.4kg EBC004 POA

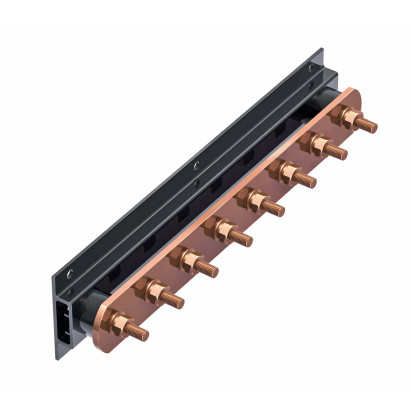

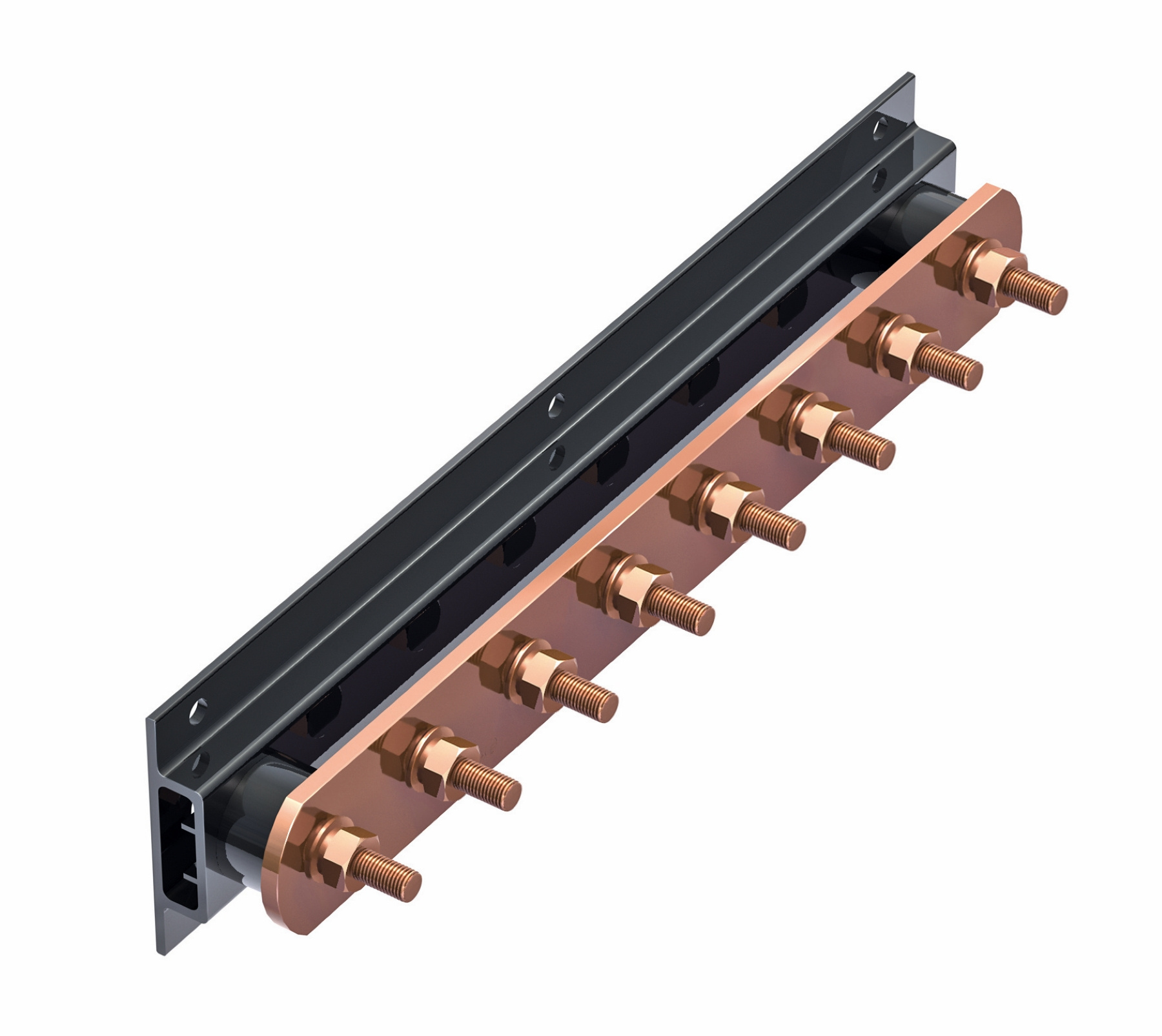

LK245-6 CJ0043 6 M10 400 x 90 x 90mm 1.80kg EBC006 £69.04
LK245-6SS 6 M10 400 x 90 x 90mm 1.80kg STAINLESS STEEL (ECONOMY PRODUCT) £56.70
LK245-8 8 M10 500 x 90 x 90mm 2.20kg EBC008 £79.38
LK245-8SS 8 M10 500 x 90 x 90mm 2.20kg STAINLESS STEEL (ECONOMY PRODUCT) £66.47
LK245-10 CJ2095 10 M10 650 x 90 x 90mm 2.80kg EBC010 £96.60
LK245-10SS 10 M10 650 x 90 x 90mm 2.80kg STAINLESS STEEL (ECONOMY PRODUCT) £75.08
LK245-12 CJ2104 12 M10 750 x 90 x 90mm 3.20kg EBC012 £109.73
LK245-12SS 12 M10 750 x 90 x 90mm 80.25 STAINLESS STEEL (ECONOMY PRODUCT) £84.26
LK245-14 CJ2097 14 M10 850x90x90mm 3.60kg Phosphor Bronze POA
LK245-16 CJ2113 16 M10 950 x 90 x 90mm 4.00kg EBC016 POA
LK245-18 18 M10 1050 x 90 x 90mm 5.00kg Phosphor Bronze POA
LK245-20 CJ2124 20 M10 1200 x 90 x 90mm 5.00kg EBC020 POA
LK245-22 22 M10 1300 x 90 x 90mm 5.40kg Phosphor Bronze POA
LK245-24 24 M10 1400 x 90 x 90mm 5.80kg EBC024 POA
LK245-26 26 M10 1500 x 90 x 90mm 6.20kg Phosphor Bronze POA
LK245-28 26 M10 1650 x 90 x 90mm 6.20kg Phosphor Bronze POA
LK245-30 30 M10 1750 x 90 x 90mm 7.30kg Phosphor Bronze POA
