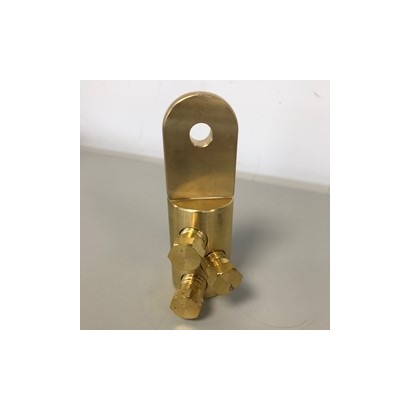

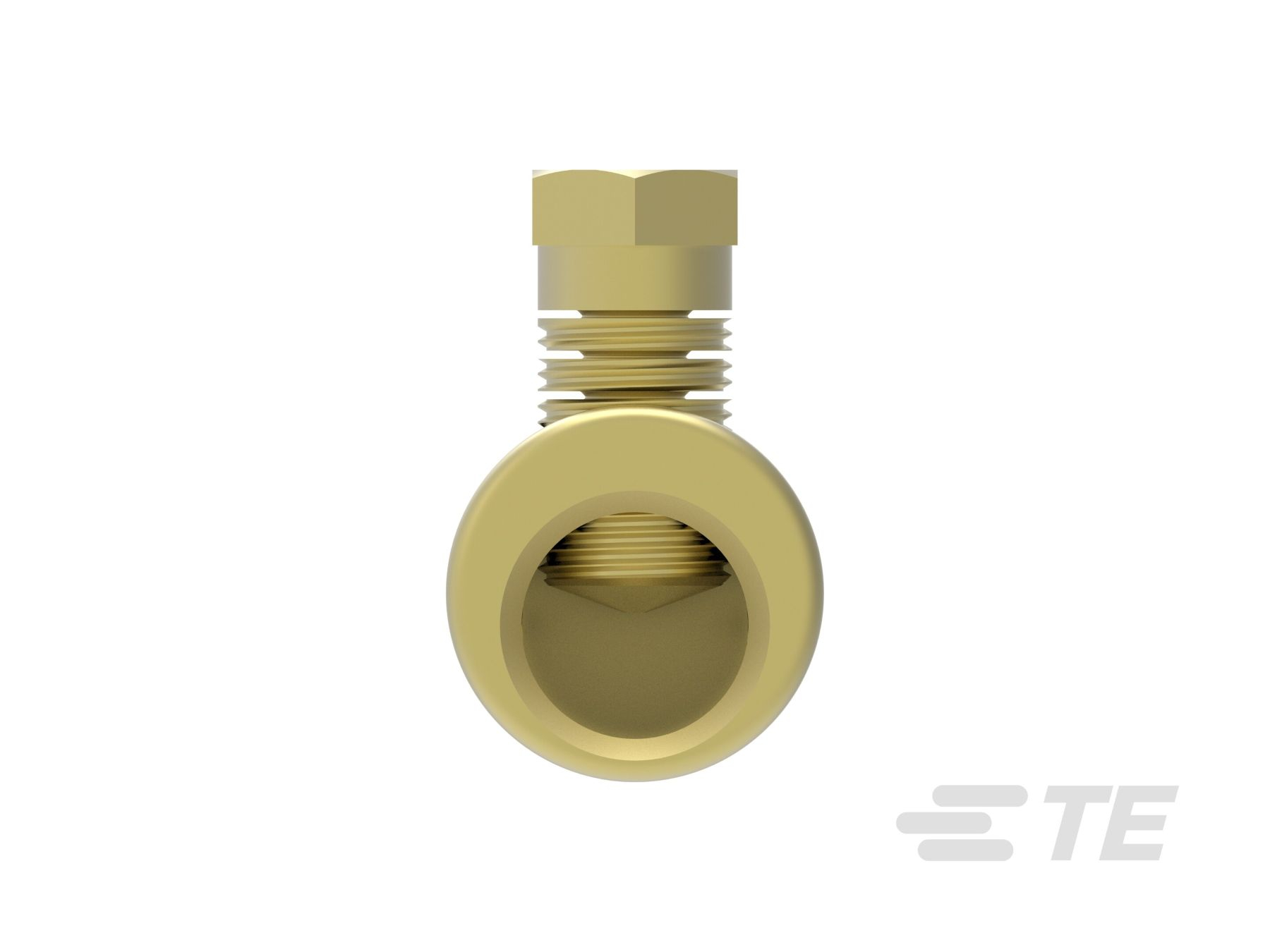

TYCO HV Lugs – 1 Bolt


from only £44.10 Ex VAT

Tyco Brass End Terminations with in line palm for copper conductors up to 33kV

The end terminations are designed primarily for use on stranded copper conductors

  • Supplied with range taking bolts
  • Solid moisture block between palm and barrel
  • Smooth profile prevents damage to insulation or sealing sleeves
  • Allows close fitting insulation sleeves to pass over the lug during installation
  • All bolts use 19mm socket or spanner
  • Manufactured by industry leaders Tyco Electronics
Order
Part Number Additional Part Number Palm Hole Diameter Conductor Size Price Ex VAT Quantity
VETB21-12UTB BAH-024030068 13mm 95-240mm £44.10
VETB28-12UTB BAH-024030083 13 mm 185-400mm £44.10
VETB28-16UTB BAH-024030086 17mm 185-400mm £44.10
