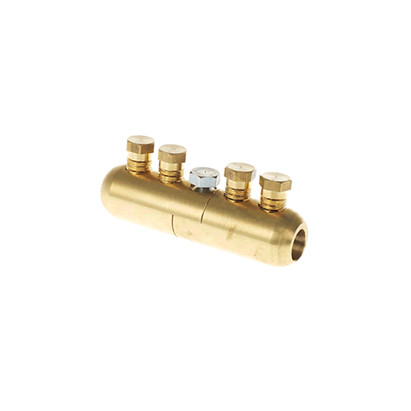

TYCO HV Split Blocked to 33kV


from only £59.85 Ex VAT

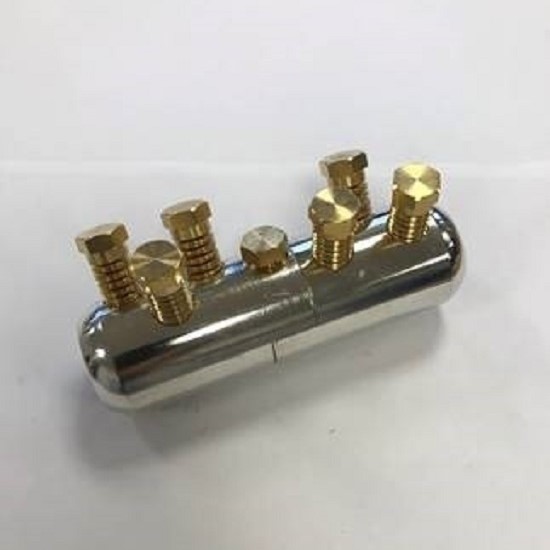

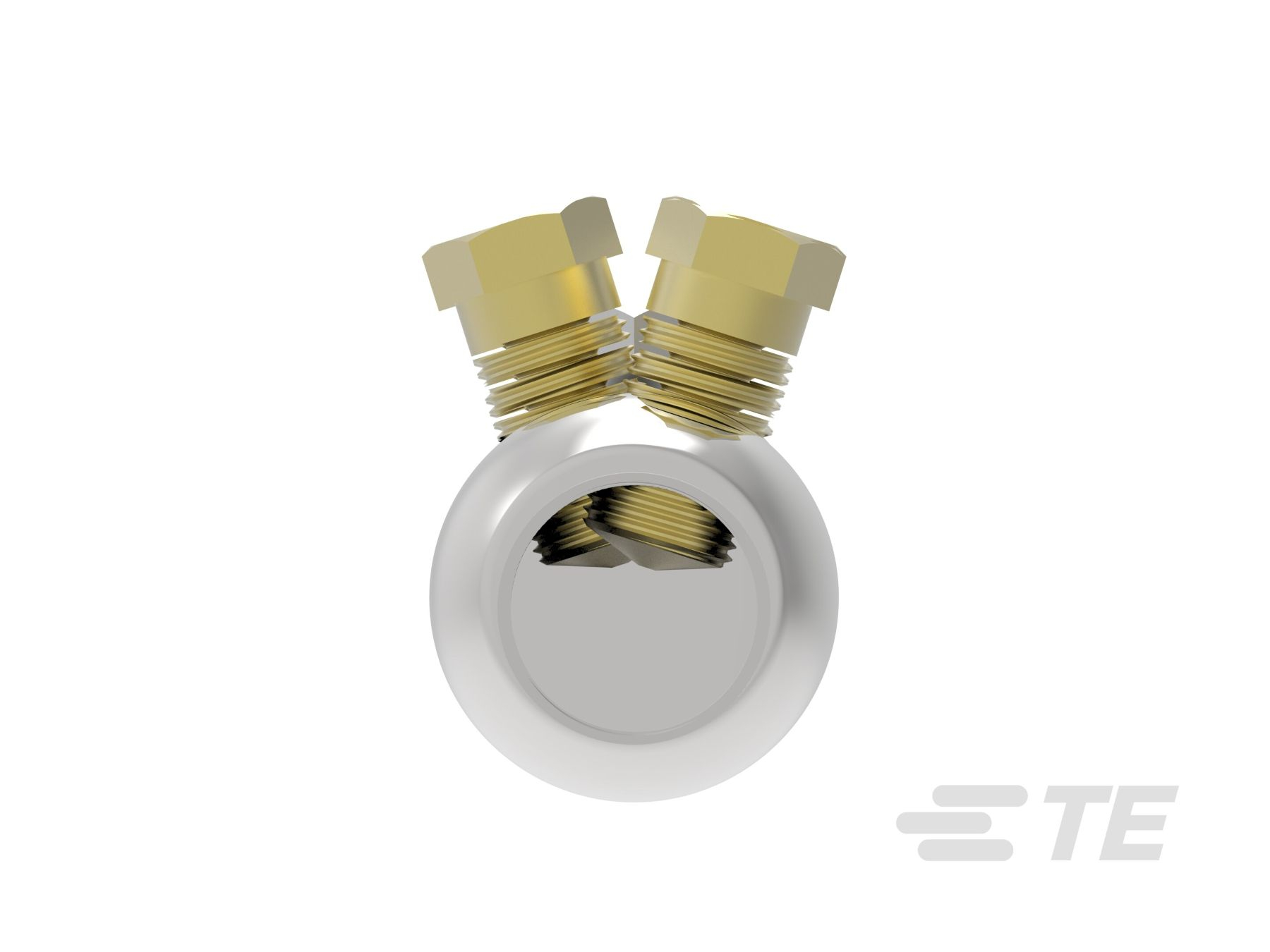

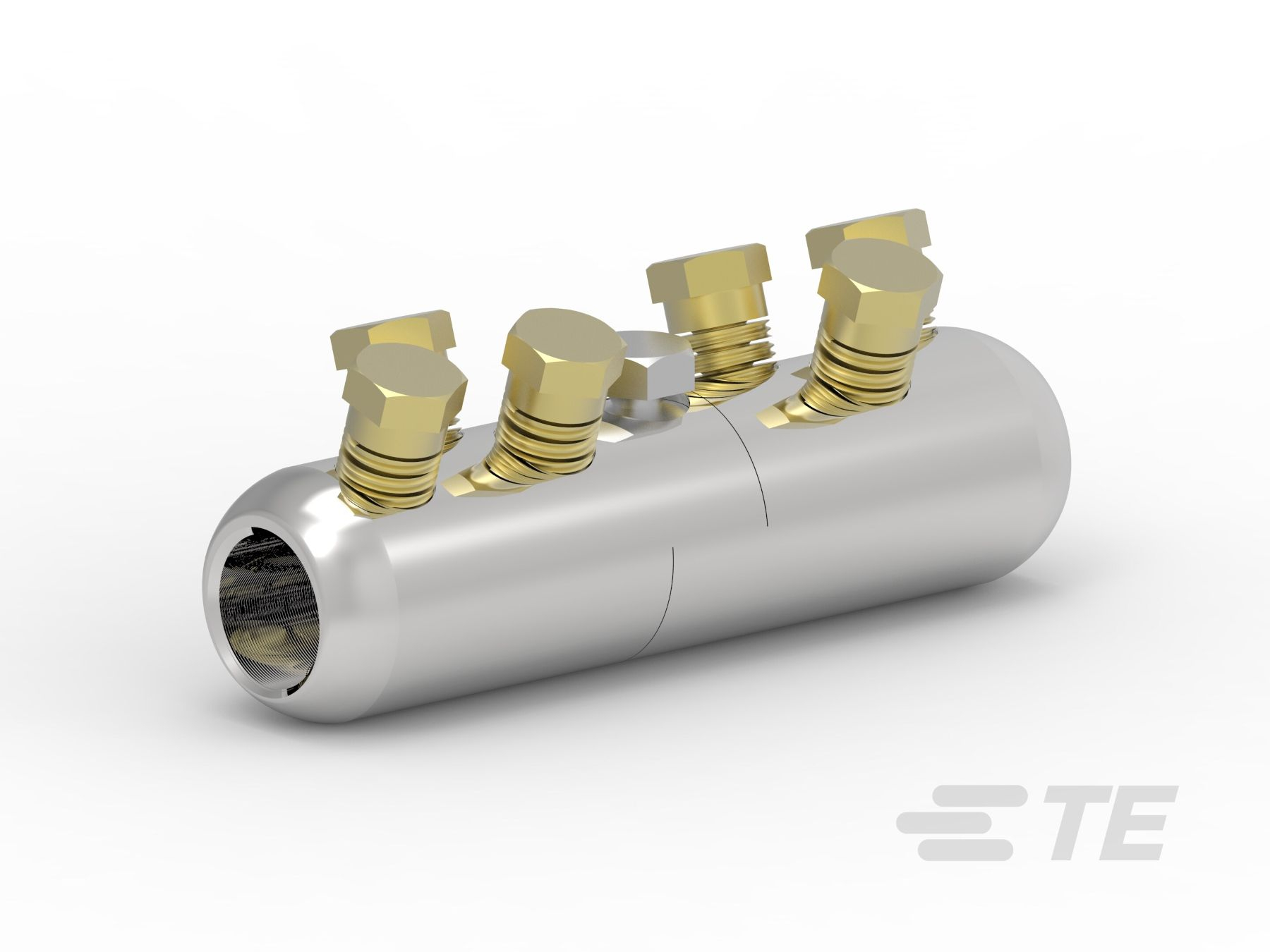

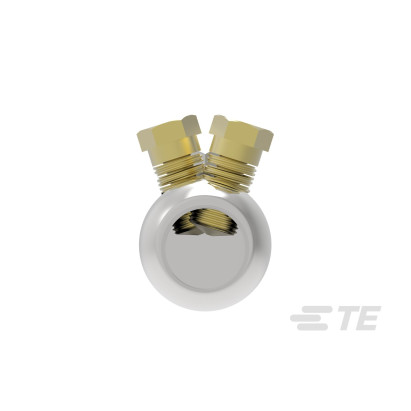

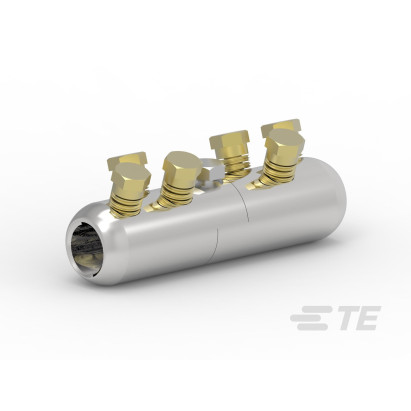

Tyco Brass HV mechanical connectors for copper & aluminium conductors

Smooth Profile Straight Joint Connectors for Conductors up to 33kV

  • Designed to connect two HV conductors inline without bending the cable to make the connection
  • Shear bolt technology to ensure a good electrical connection
  • Solid moisture block between palm and barrel
  • V interface ensures alignment and reduces connector resistance
  • Low torque shear head bolts
  • Smooth connector profile when installed
  • Tapered ends
  • Bolt heads shear off flush with connector body
  • Manufactured by industry leaders TYCO
Technical Data
  • 33kV Rated
  • Designed to meet BS 4579 Part 1
Datasheets
Order
Part Number BAH Ref Number Splice Material Conductor Type Conductor Size Price Ex VAT Quantity
VTPB21-UTB Cu/Ali 95-240mm² BAH-022110046 Brass £59.85
VTPB27-UTB Cu/Ali 185-400mm² BAH-022110048 Brass £102.90
VTPC28-UTB Cu 185-400mm² BAH-022110052 Tinned Copper £109.20
VTPC36-UTB Cu 500-630mm² BAH-022110055 Tinned Copper £220.50
