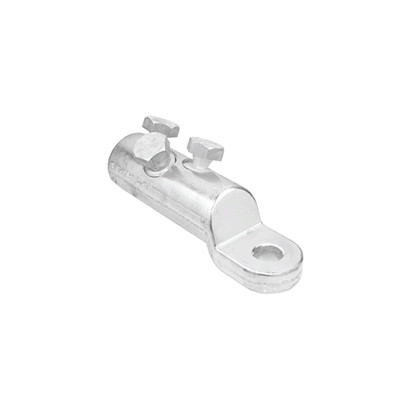

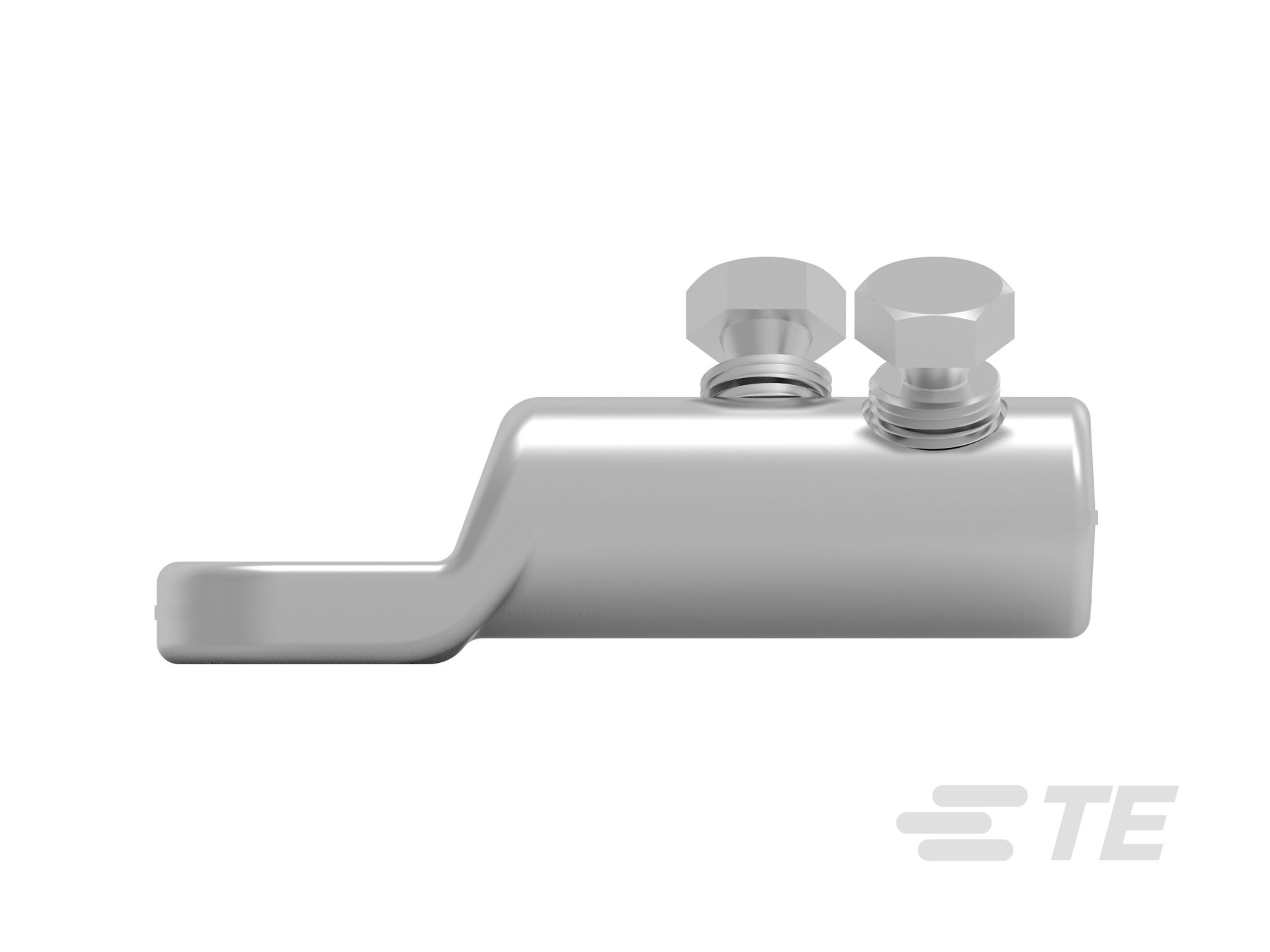

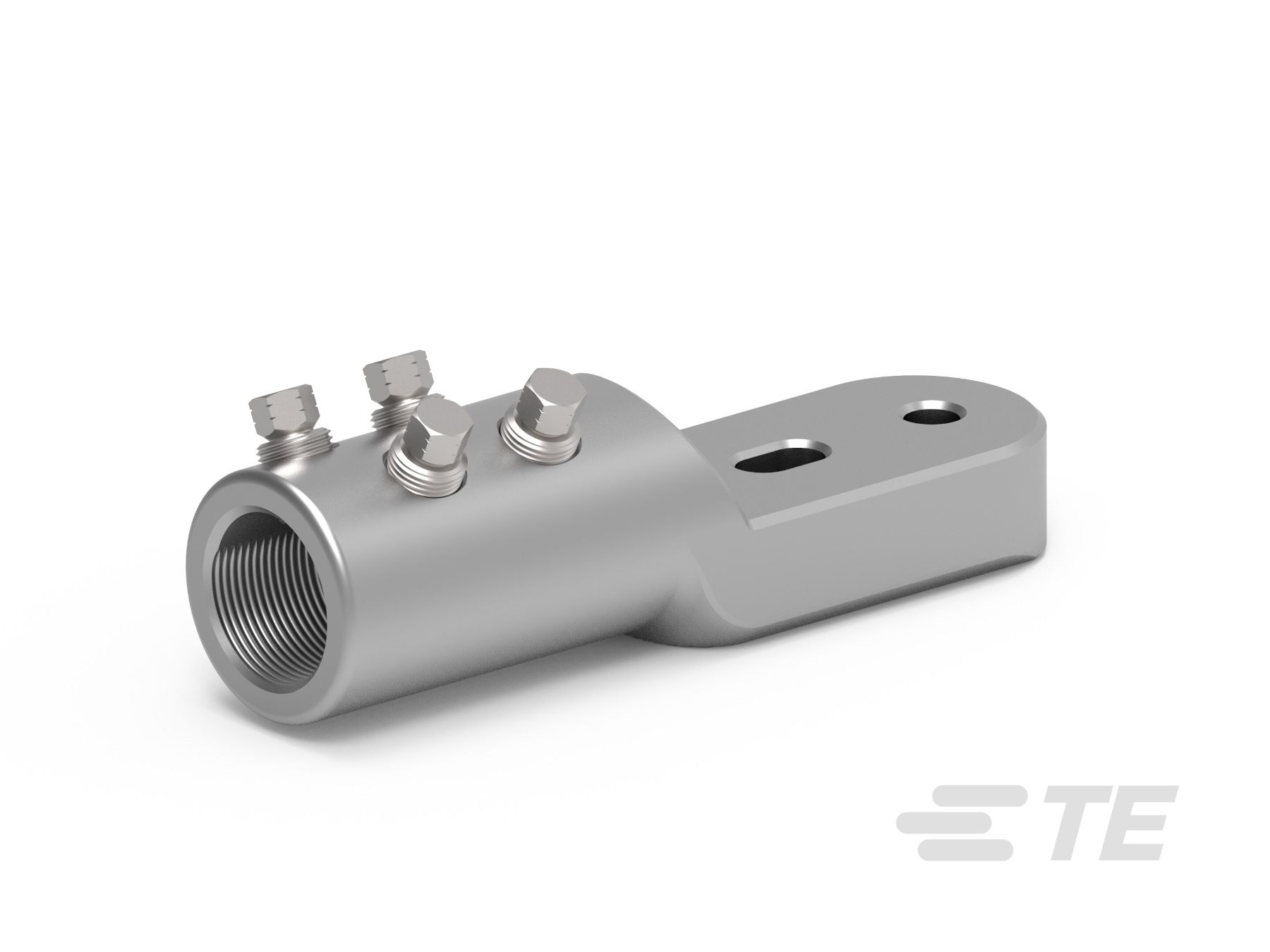

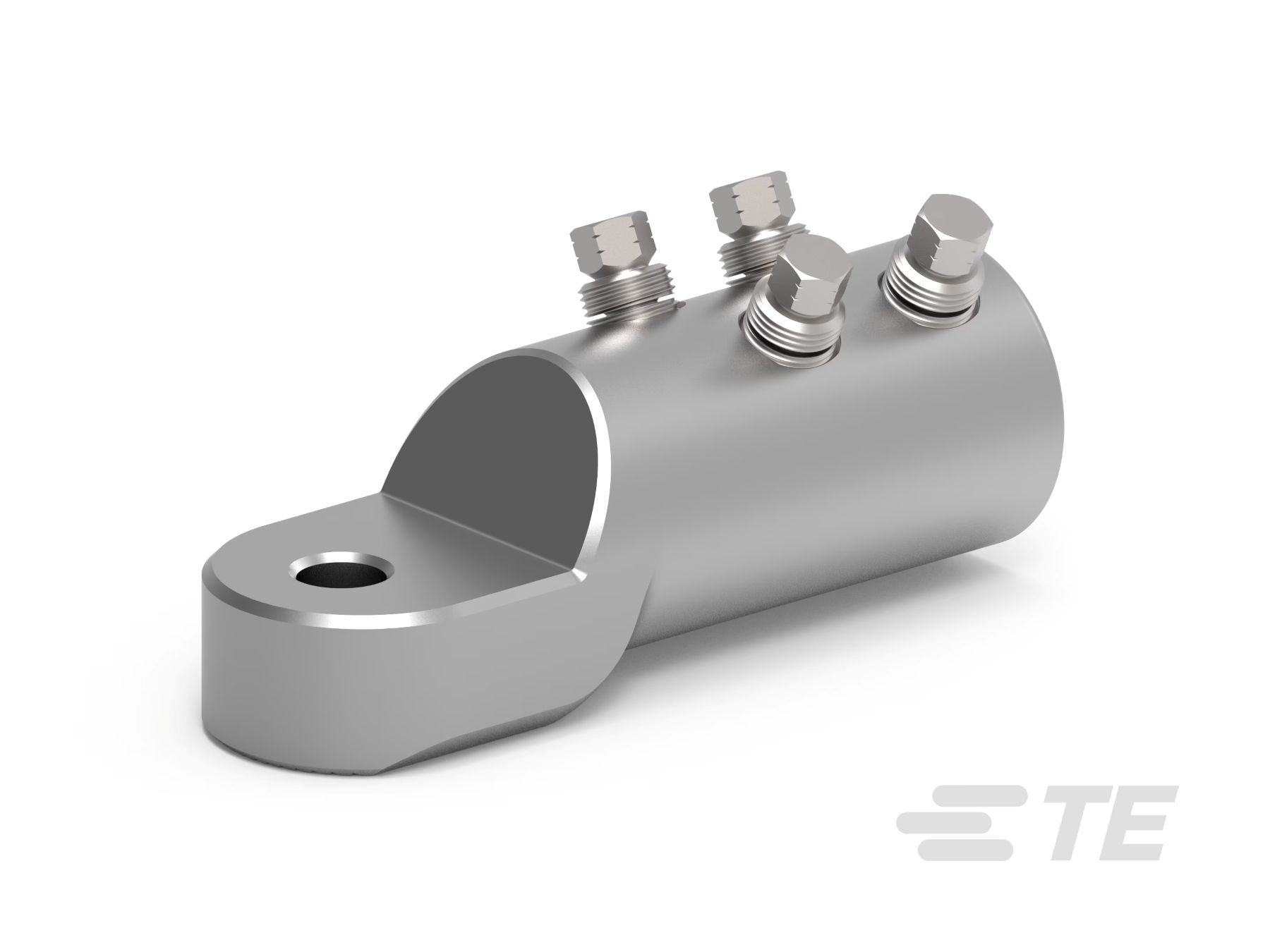

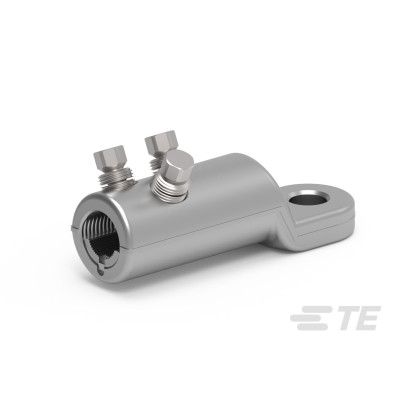

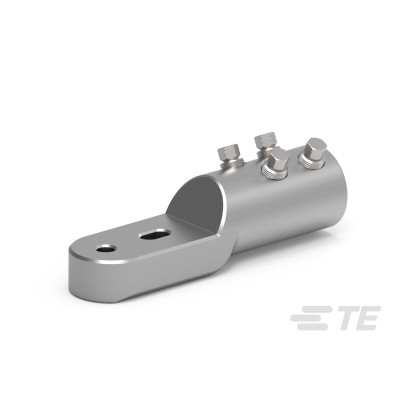

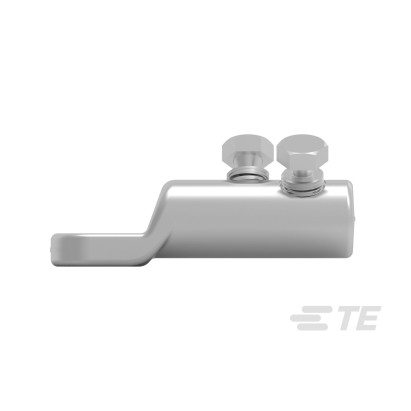

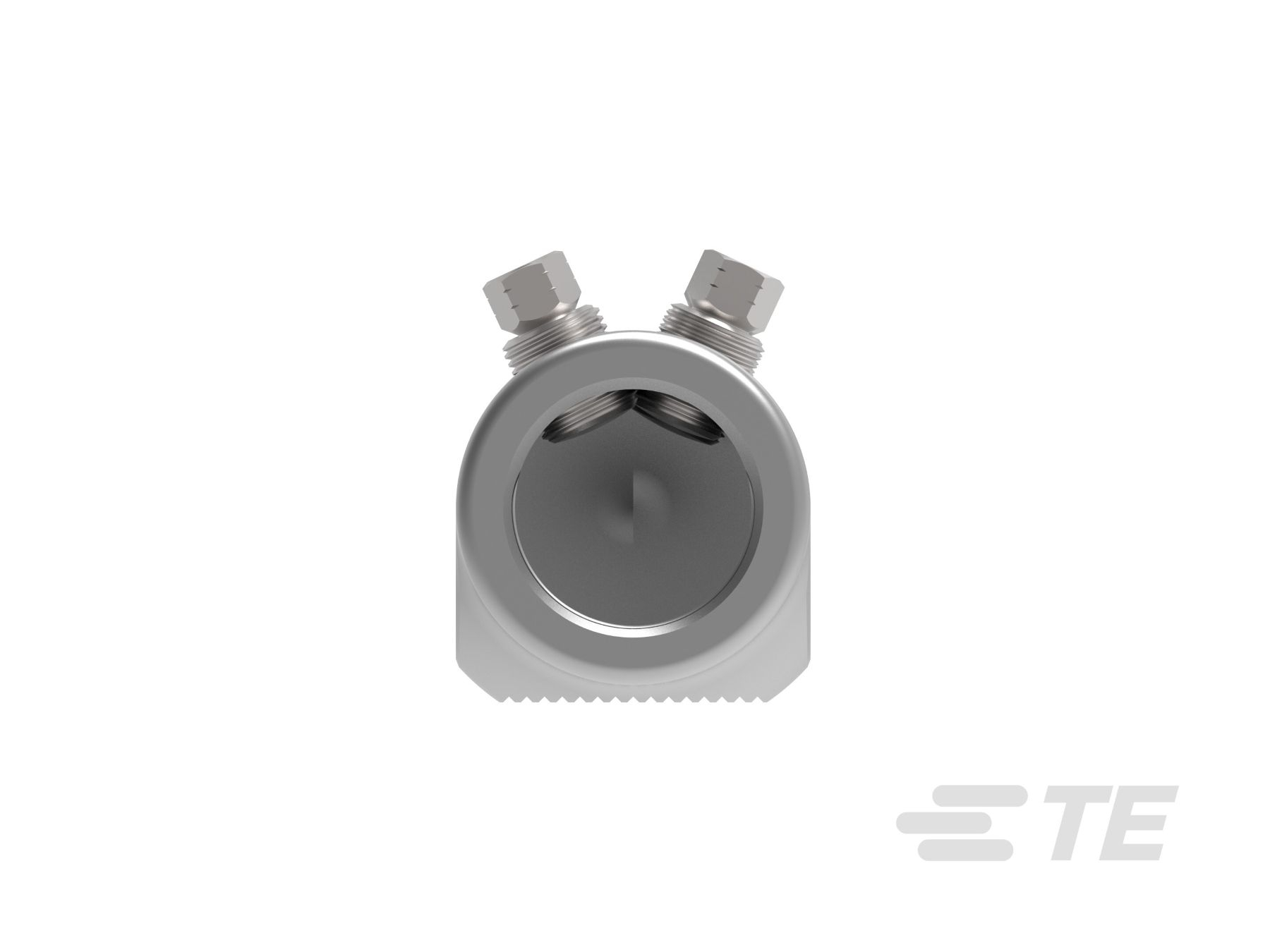

TYCO HV Lugs 11-42kV


from only £10.66 Ex VAT

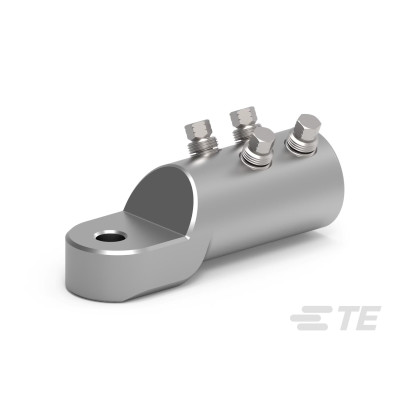

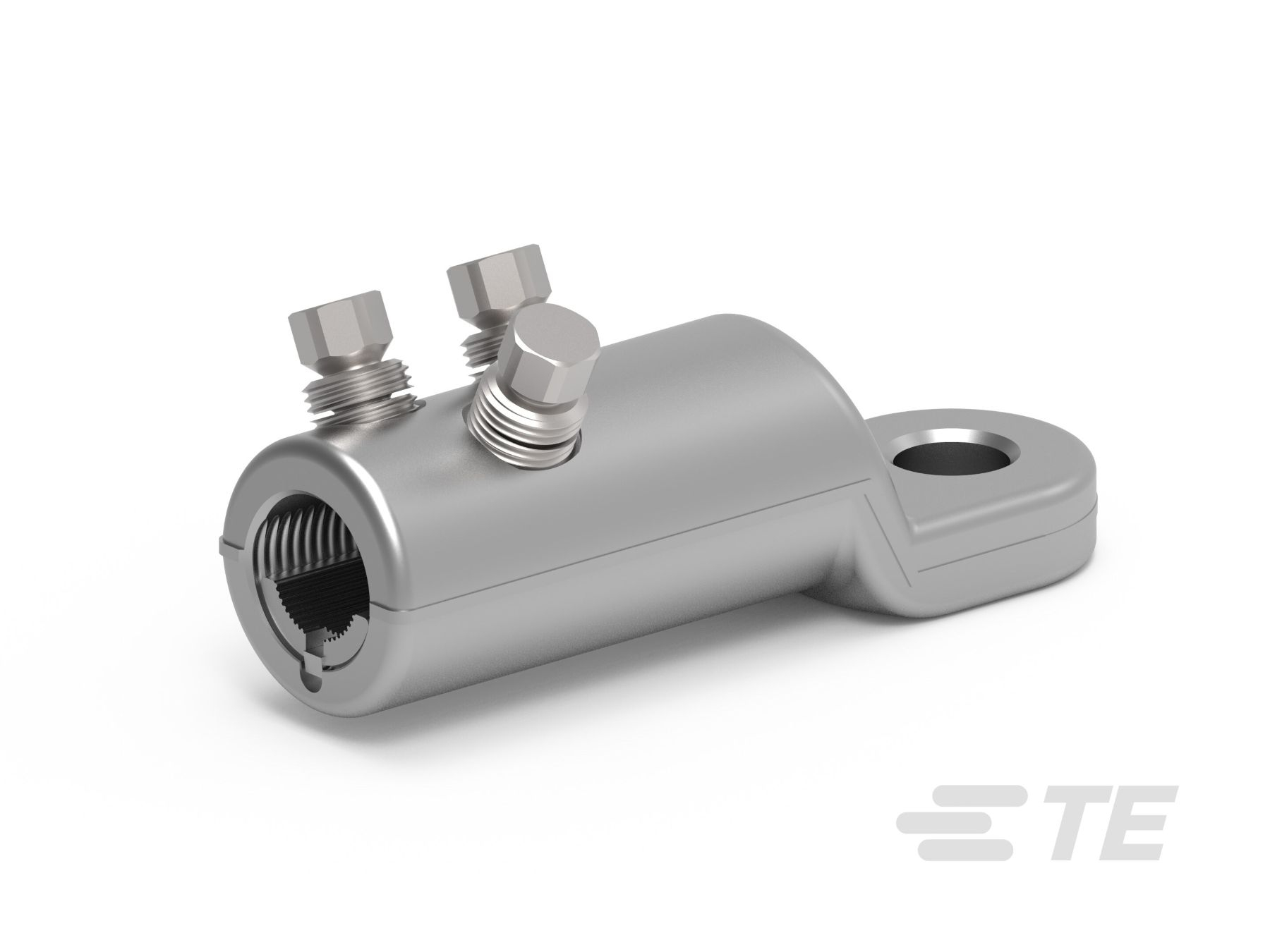

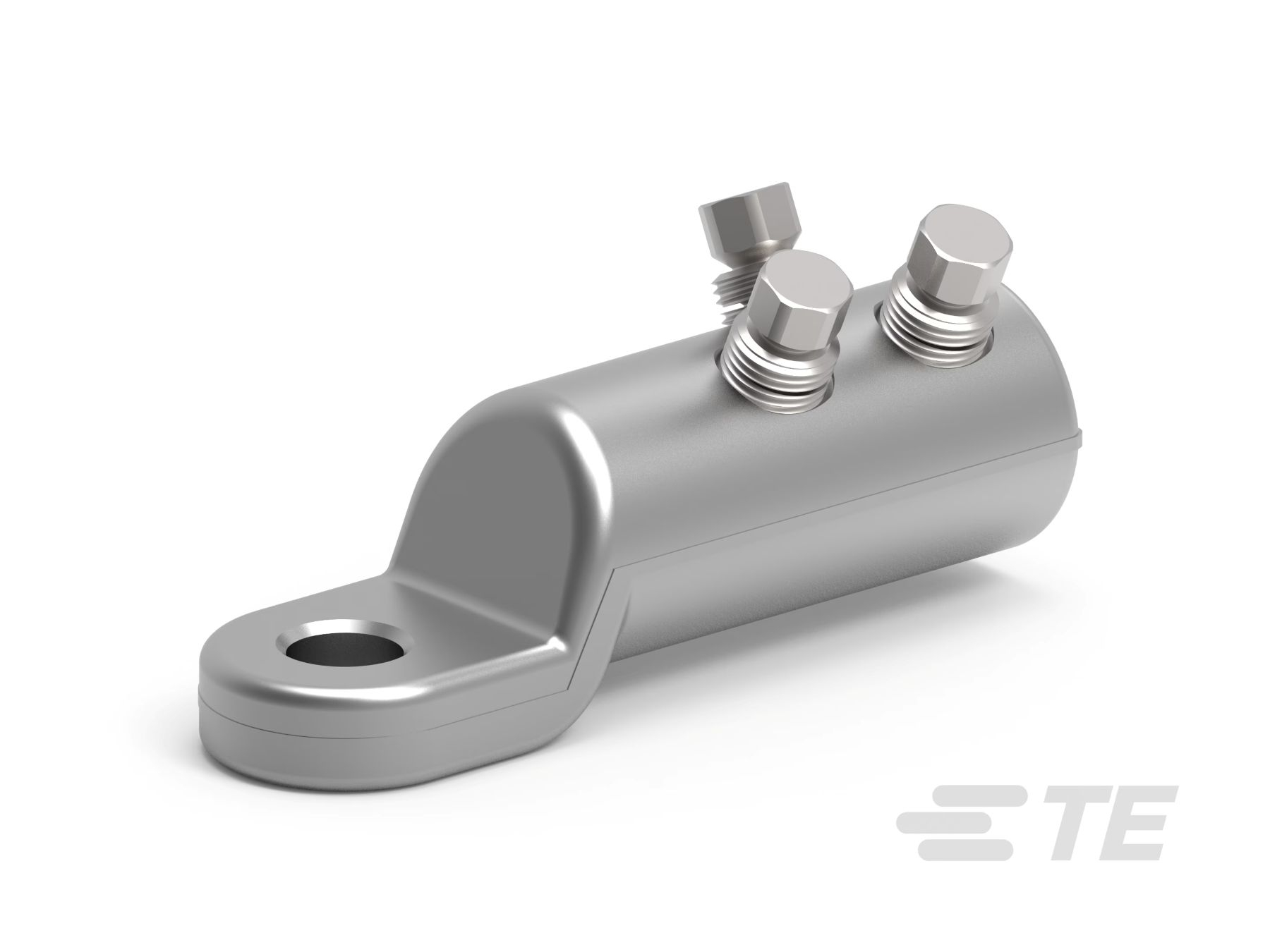

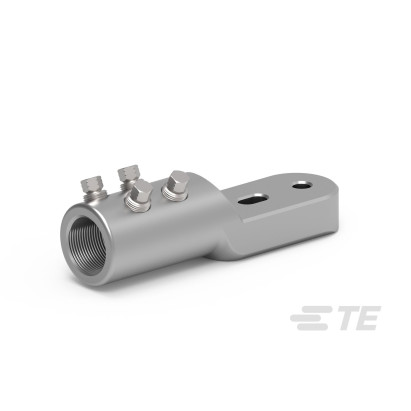

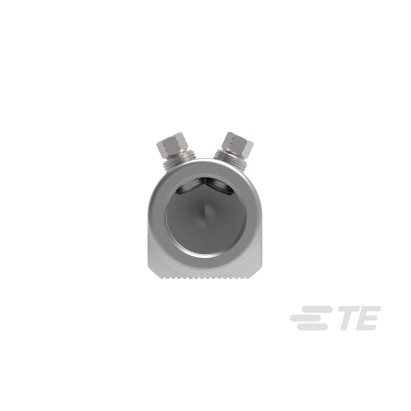

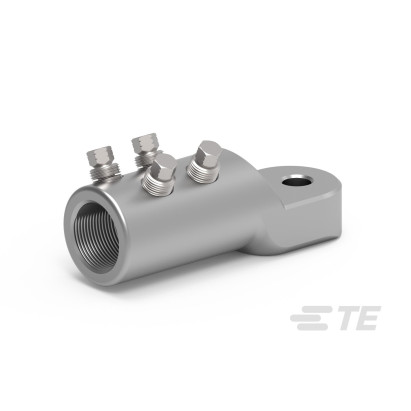

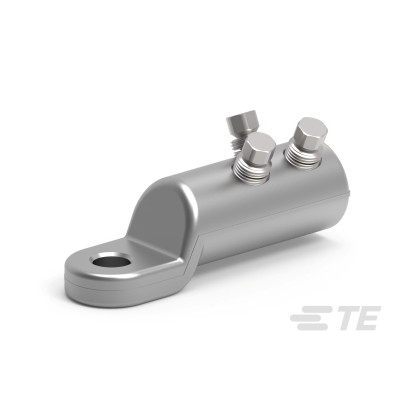

Tyco HV Aluminium Mechanical lugs for copper & aluminium conductors

  • Designed to be connected onto a conductor to facilitate the termination of the cable without the need for crimping
  • High tensile tin plated aluminium alloy
  • Shear bolt technology to ensure a good electrical connection
  • Solid moisture block between palm and barrel
  • Smooth profile prevents damage to insulation or sealing sleeves
  • No elongation during installation
  • Wide application range
  • Compact design
  • Larger sizes available on request
  • For solid copper and aluminium conductors please contact your nearest sales office
Technical Data
  • 42KV Rated
  • Designed to meet BS 4579 Part 1
Order
Part Number Palm Hole Diameter Conductor Type Conductor Size Price Ex VAT Quantity
BLMT-25/95 Cu / Ali 25-95mm² £10.66
BLMT-35/150 Cu / Ali 35-150mm² £12.86
BLMT-95/240 Cu / Ali 95-240mm² £16.43
BLMT-120/300 Cu / Ali 120-300mm² £21.11
BLMT-150/400 MK2 Cu / Ali 150-400mm² £30.98
BLMT-500/630 MK2 Cu / Ali 500-630mm² £53.55
BLMT-800/1000 Cu / Ali 800-1000mm² £174.30
