Disconnecting Link - Twin


from only POA

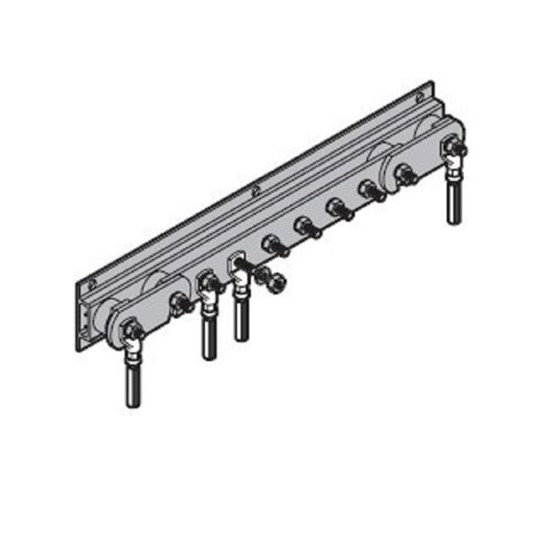

Furse Earth Bars – Twin Disconnecting Link (Bare Copper & Tinned Copper Options available)

  • An earth bar with twin disconnecting links to facilitate multiple connections to earth with the option of isolating from either side of the earth bar for testing purposes
  • Manufactured out of high conductivity 50x6mm HD copper bar
  • The PVC channel base is entirely corrosion proof - made with high impact UPVC unlike the traditional galvanised steel channel
  • Lighter and easier to handle - the use of a modern polymer channel has reduced the weight of the product making it easier to handle
  • No need for insulators - spacers used as the PVC base is insulating
  • M10 phosphor bronze stud assemblies
  • Pre-drilled holes for ease of installation
  • A range of four designs to meet most installation requirements
  • Custom made earth bar service available
  • Tinned options available on request
Order
Part Number Wolseley Code Stud Material No. of Ways Stud Size Weight Each Price Ex VAT Quantity
LK207-4 CJ2135 4 M10 400 x 90 x 96mm tbc EBC204 POA
LK207-6 6 M10 550 x 90 x 96mm 2.80kg EBC206 £94.76
LK207-6SS 6 M10 550 x 90 x 96mm 2.80kg STAINLESS STEEL (ECONOMY PRODUCT) £75.60
LK207-8 CC5186 8 M10 650 x 90 x 96mm 3.20kg EBC208 £104.21
LK207-8SS SB74797 8 M10 650 x 90 x 96mm 3.20kg STAINLESS STEEL (ECONOMY PRODUCT) £92.93
LK207-10 CJ2088 10 M10 800 x 90 x 96mm 3.80kg EBC210 £134.19
LK207-10SS 10 M10 800 x 90 x 96mm 3.80kg STAINLESS STEEL (ECONOMY PRODUCT) £108.15
LK207-12 CJ2091 12 M10 900 x 90 x 96mm 4.20kg EBC212 £148.58
LK207-12SS 12 M10 900 x 90 x 96mm 4.20kg STAINLESS STEEL (ECONOMY PRODUCT £120.23
LK207-14 JZ3166 14 M10 1000 x 90 x 96mm 4.60kg Phosphor Bronze POA
LK207-16 16 M10 1100 x 90 x 96mm 5.0kg EBC216 POA
LK207-18 18 M10 1200 x 90 x 96mm 5.40kg Phosphor Bronze POA
LK207-20 CJ2114 20 M10 1350 x 90 x 96mm 6.0kg EBC220 POA
LK207-22 22 M10 1450 x 90 x 96mm 6.4kg Phosphor Bronze POA
LK207-24 24 M10 1590 x 90 x 96mm 6.4kg Phosphor Bronze POA
LK207-26 26 M10 1650 x 90 x 96mm 7.90kg Phosphor Bronze POA
LK207-28 28 M10 1800 x 90 x 96mm 7.9kg Phosphor Bronze POA
LK207-30 30 M10 1900 x 90 x 96mm 8.30kg Phosphor Bronze POA
