Tyco 24kV Type A Elbow Connecctor
from only £330.75 Ex VAT

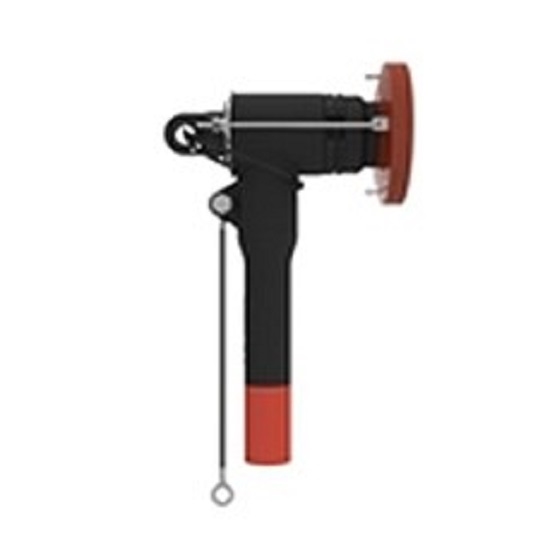

Tyco 24kV Separable Connectors for Type A Bushings - Elbow
Designed to facilitate the easy connection and disconnection of single core copper wire screened XLPE cables to medium voltage equipment like switchgear and transformers
- Manufactured from crosslinked EPDM and protected with a minimum 3mm moulded conductive shield connected to earth
- These dead break adaptors are suitable for indoor and outdoor applications
- Their wide application range to cover several different cable cross sections without the need for additional cable adaptors
- Available in straight and elbow configuration
- Supplied with high strength bimetallic compression connectors to connect copper and aluminium conductors
- The screened cable connector exceeds CENELEC HD 629.1 S1 requirements which includes BS,VDE and other international specifications
- Maximum System Voltage 24kV
- Continuous Current 250A
- Separable connector system for interface A bushing 12-24kV 250A
** For Al class 1 & Cu class 5: 25mm2; For Cu class 1: 10mm2
