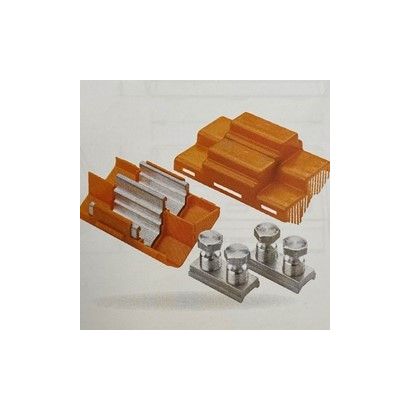

Tyco Ali Branch Connectors c/w Shroud


from only £9.66 Ex VAT

Tyco Aluminium Branch Connectors c/w Shroud

Designed to connect low voltage aluminium and copper conductors

  • Can be used as a transition connector between cables with differing conductor constructions, materials and sizes
  • Standard product is supplied with shear head bolts
  • Low torque, direct acting bolts
  • Including stranded or solid 120° and 90° sectorial or round conductors up to the maximum cross section for which the connector is designed
  • Moulded orange shroud offers reliable insulation
  • Robust design
  • Reduced installation time
  • Breather holes on the shroud allow 2 and 3 part resins to flow freely and encapsulate the connector and shroud assembly
  • UBR95 range requires a 13mm socket or spanner and UBR185 and UBR300 ranged require a 19mm socket or spanner to complete the installation
Technical Data
  • Connector tested to IEC 61238-1 (2003) and ER C79
  • Mouled insulation shroud tested to 5kV AC and 1kV DC
Order
Part Number Alternative Ref Range Price Ex VAT Quantity

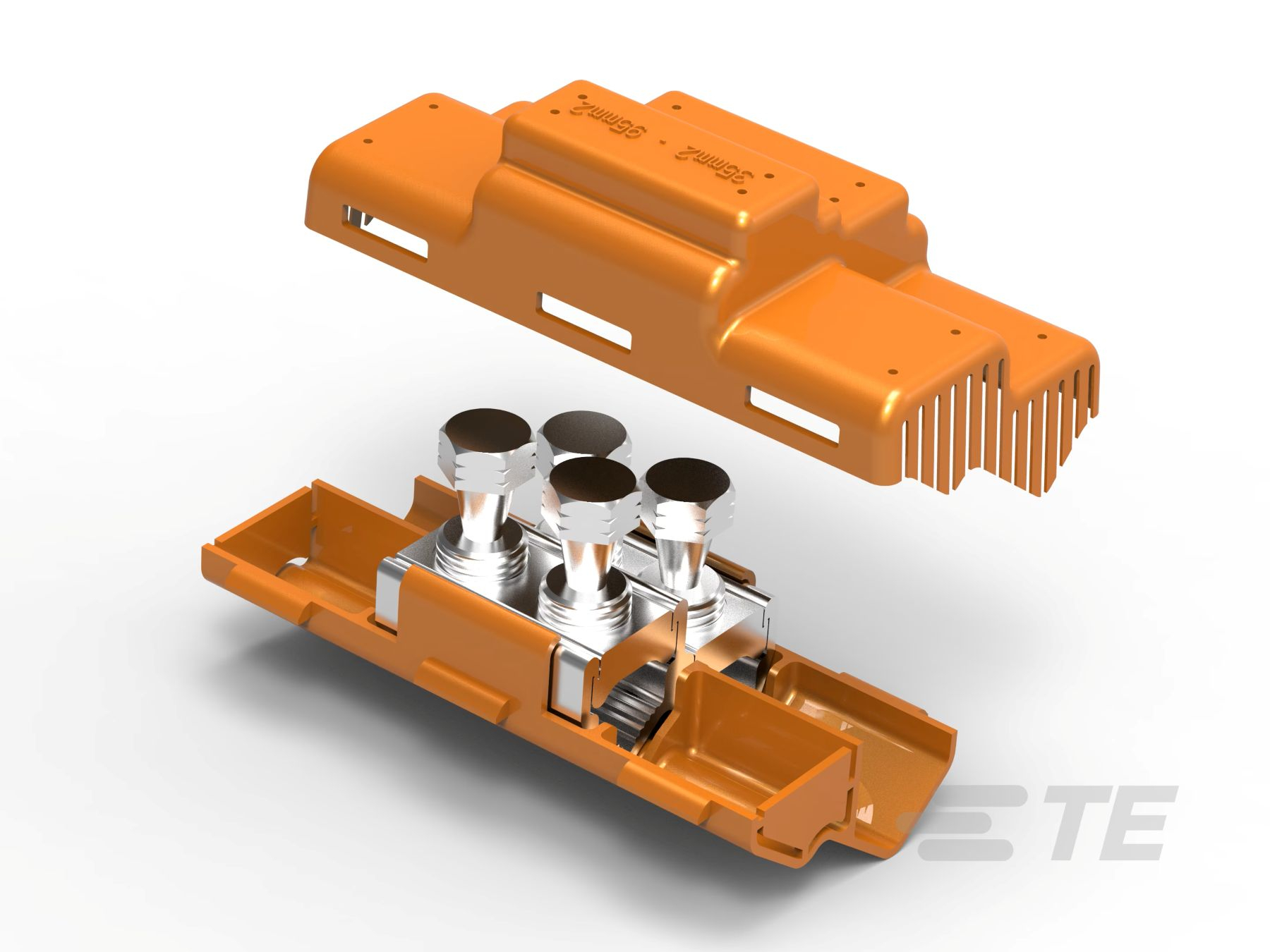

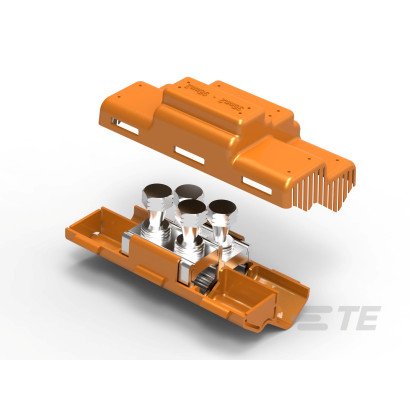

BAH-033000068 UBR095INS 35-95mm £9.66

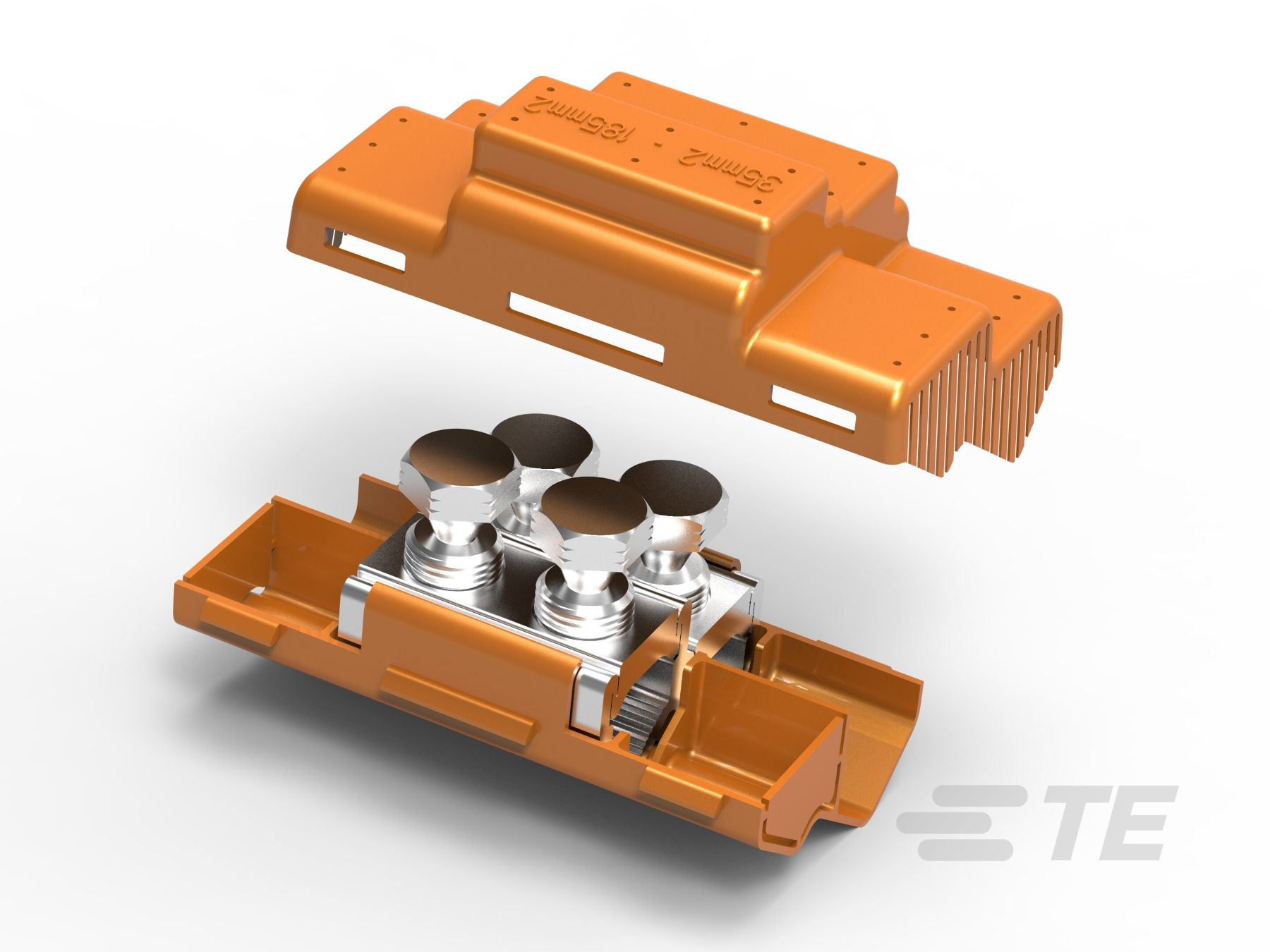

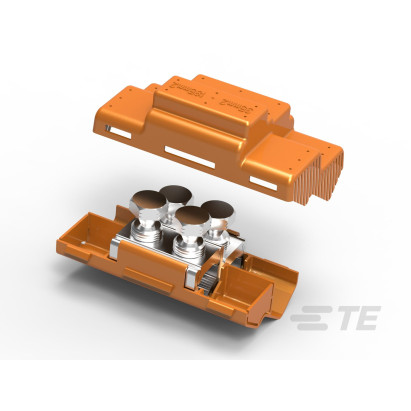

BAH-033000069 UBR185INS 35-185mm £14.54

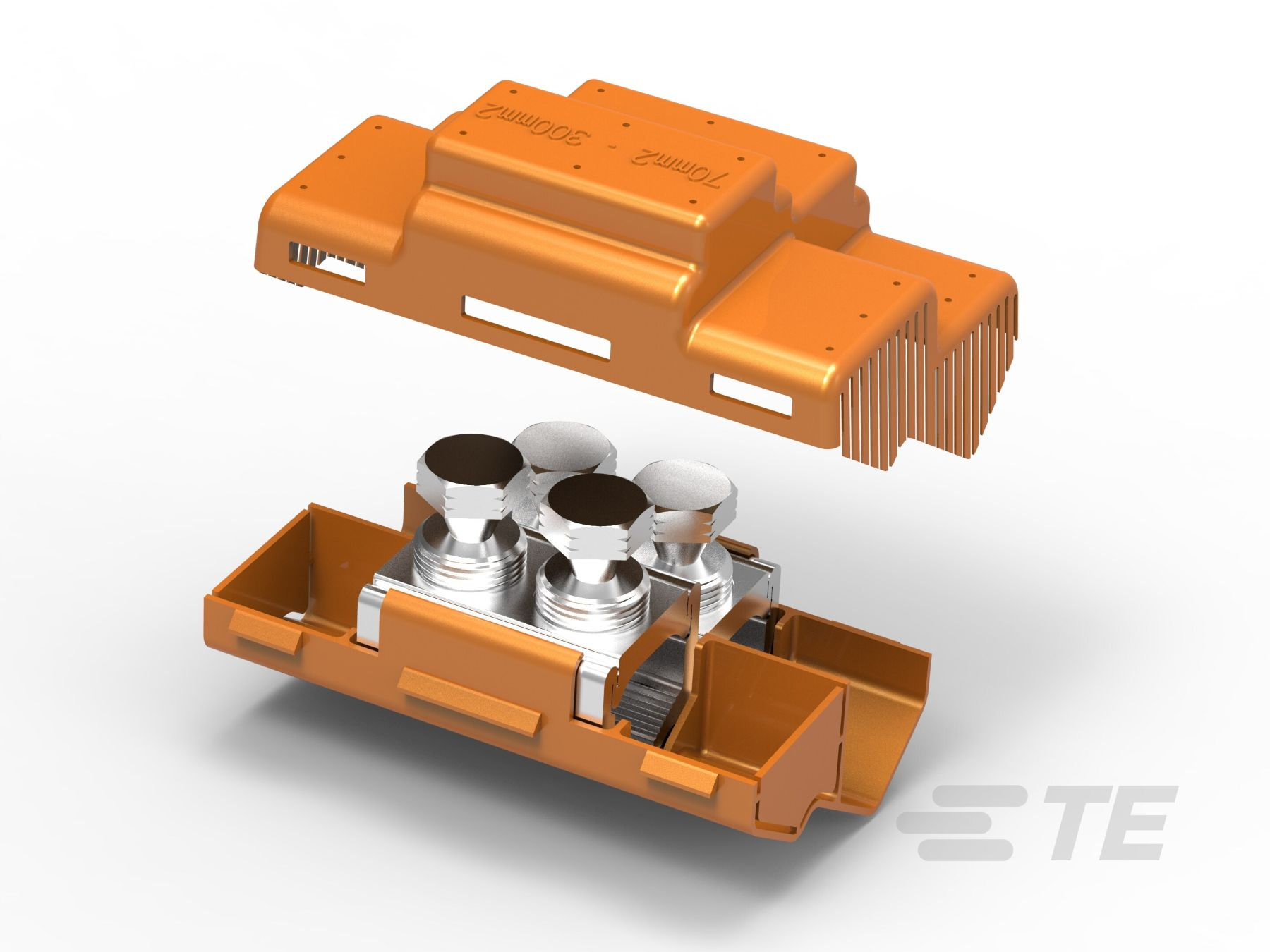

BAH-033000070 UBR300INS 70-300mm £13.60
