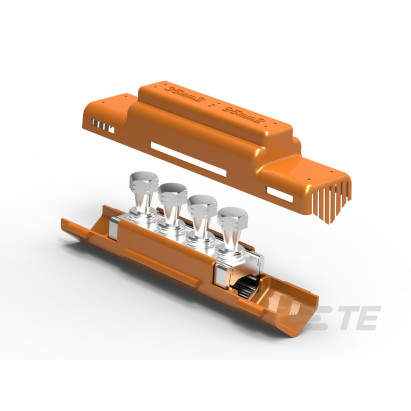

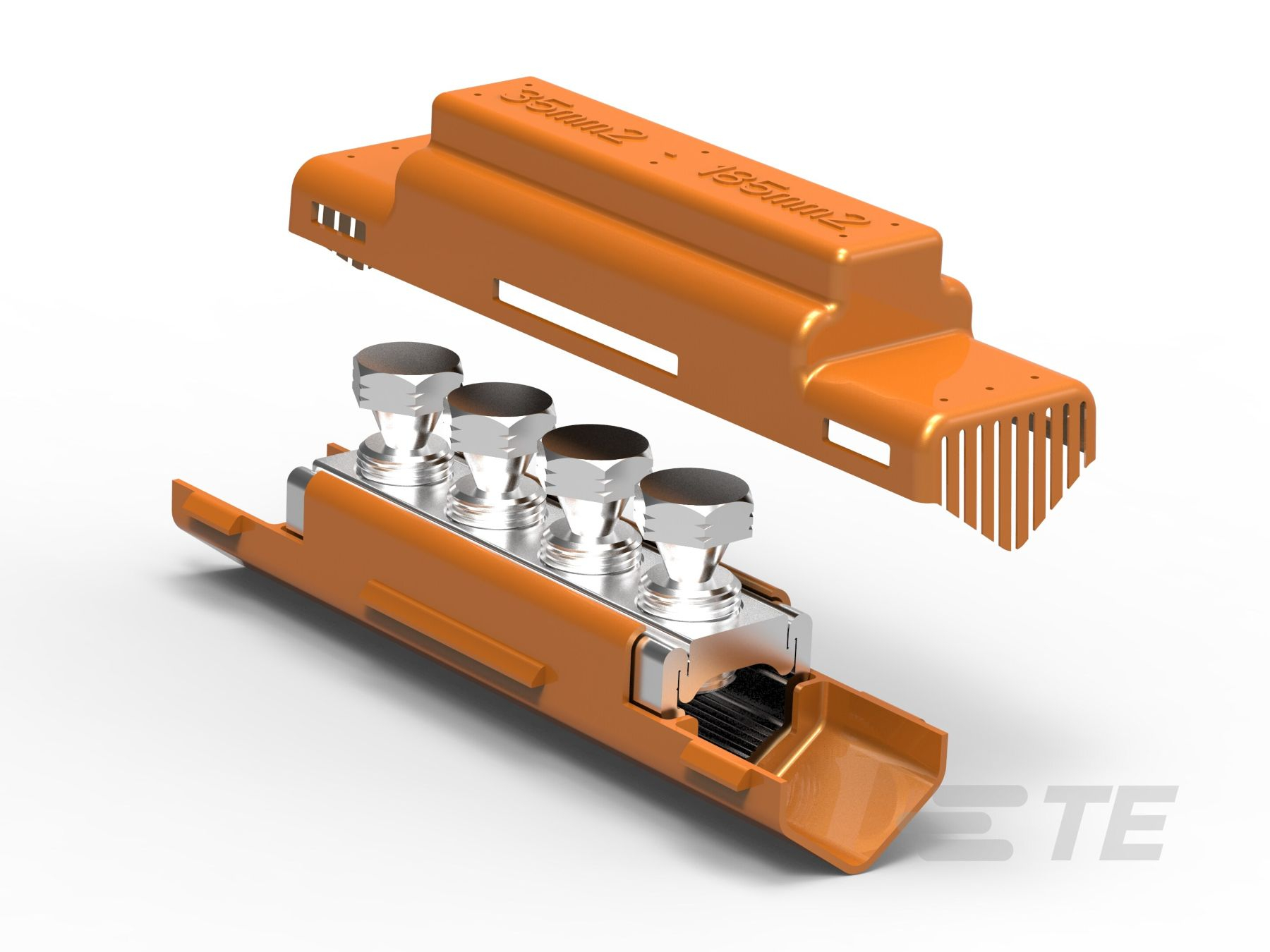

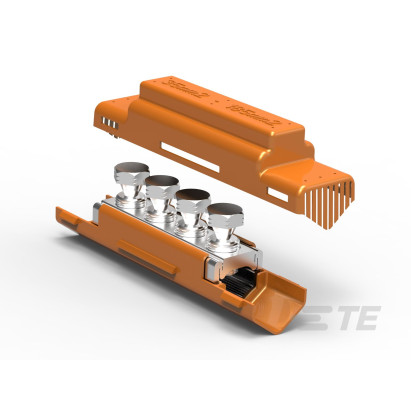

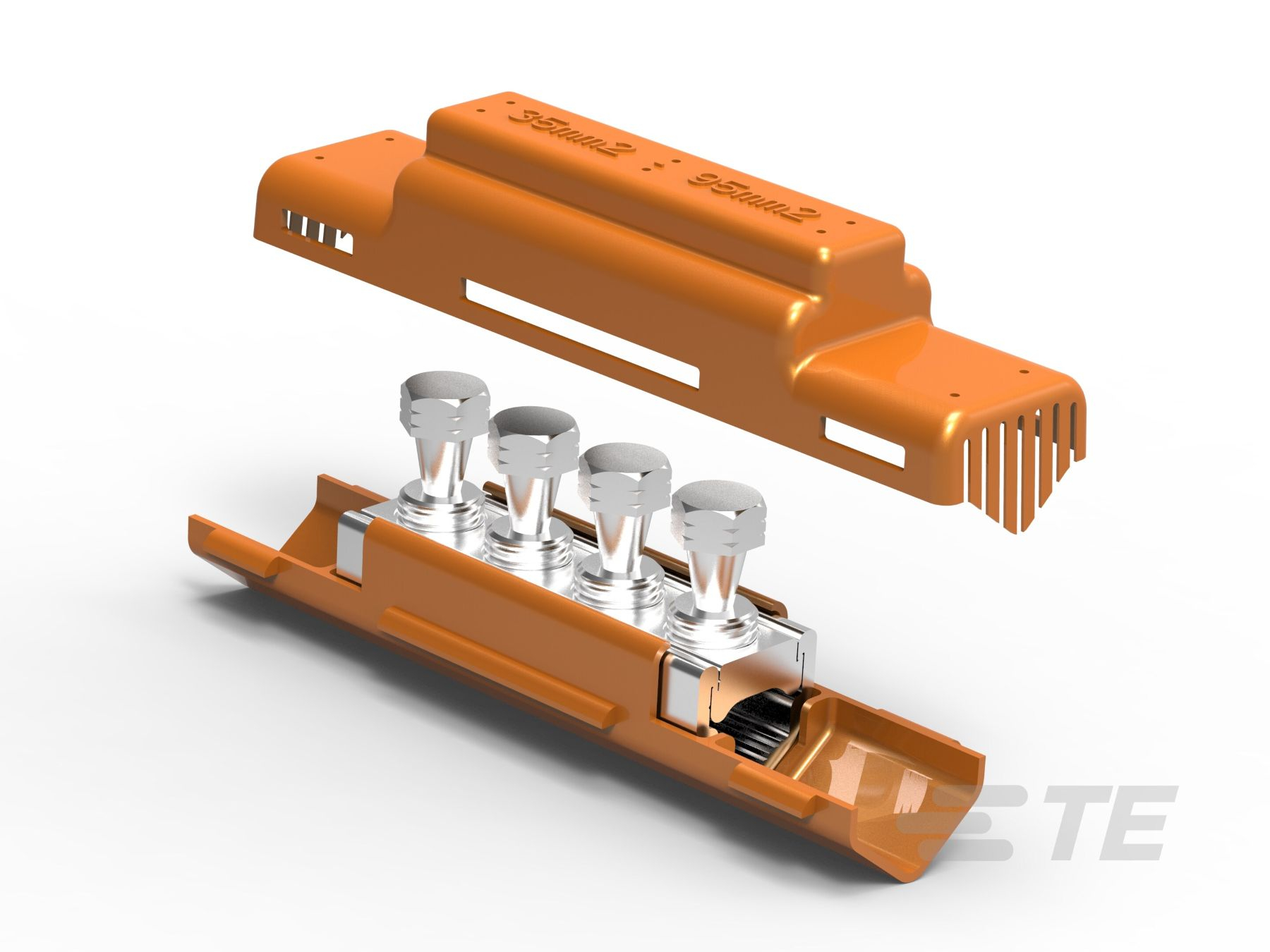

Tyco Ali Universal Connectors c/w Shroud


from only £7.88 Ex VAT

Tyco Ali Universal Connectors c/w Shroud

Designed to connect low voltage aluminium and copper conductors

  • Can be used as a transition connector between cables with differing conductor constructions types, materials and sizes
  • Standard product is supplied with shear head bolts
  • Low torque, direct acting bolts
  • Reduced installation time
  • Moulded shroud has petals at both conductor entry areas and centrally located the connector
  • Improved installation

UST95 range requires a 13mm socket or spanner to install

UST185 & UST300 require a 19mm socket or spanner to complete the installation

Technical Data
  • Connector tested to BS4579 and ER C79
  • Moulded insulation shroud tested to 5kV AC and 1kV DC
Order
Part Number Wolseley Code Alternative Ref Range Price Ex VAT Quantity
UST095INS CC2238 BAH-032020079 35-95mm £7.88
UST185INS CC2239 BAH-032020080 35-185mm £13.98
UST300INS CJ3044 BAH-032020081 70-300mm £12.39
