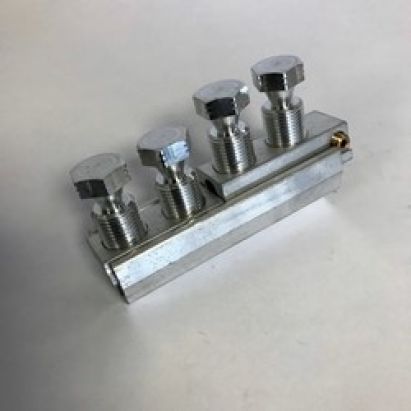

Universal Straight Service Ali Connector


from only £9.05 Ex VAT

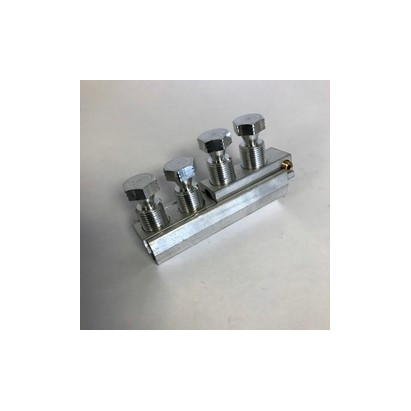

Tyco Aluminium Universal Straight Service Connector

Specifically designed for connecting low voltage (LV) aluminium and copper mains & service conductors

  • Can be used as a transition connector between cables with different constructions, types, materials and sizes
  • Service connections up to 50mm2
  • Complete with shear head bolts
  • Low torque, direct acting bolts
  • Saves on installation time
  • Moulded shroud has petals at conductor entry areas which centrally locate the connector for improved insulation
  • Manufactured by industry leaders TYCO
Technical Data
  • Designed to meet BS4579 and ER C79 requirements
  • Moulded insulation shroud tested to 5kV AC and 1kV DC
Order
Part Number Wolseley Code Alternative Part No. Range Price Ex VAT Quantity
UST095SBS CC1417 BAH-022020012 35-95mm £9.05
UST185SBS CC2572 BAH-022020027 35-185mm £12.93
UST300SBS CC1418 BAH-022020044 70-300mm £15.23
